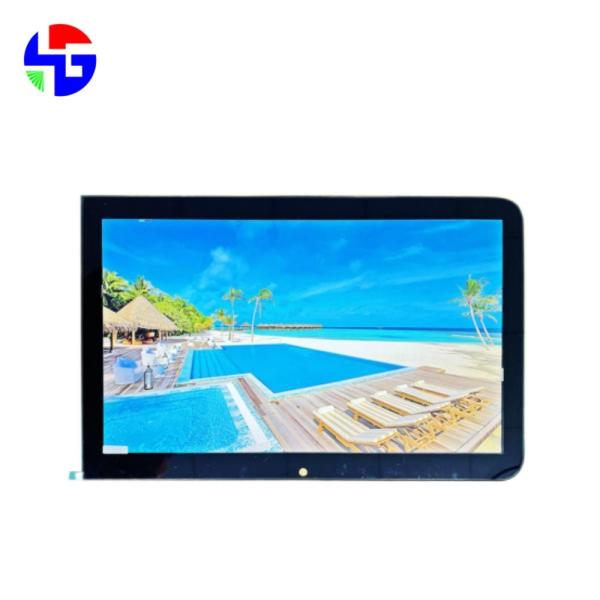

21.5-inch display is an LVDS interface 30PIN , TFT, full view view, resolution of 1920 * 1080 Security TFT Monitor
Product description
21.5-inch display is an LVDS interface 30PIN , TFT, full view view, resolution of 1920 * 1080 Security TFT Monitor, suitable for security equipment and other related products.
Product parameter details
| Model | HG215FH008T01 | Application industry | Security |
| Size | 21.5inch | Arrangement | 1920*1080 |
| Display size | 476.064mm*267.786mm | External dimensions | 524.6*326.2.6*16.03mm |
| Viewing Angle | ALL | Luminance | 500cd/m2(customizable) |
| Contrast ratio | 1000 | NTSC | 67% |
| Signal types | LVD Sinterface 30PIN |
| Temperature | Operating temperature: -0℃ ~ + 50℃, storage temperature: -20℃ ~ + 60℃ |
| TP structure | G+G | Cover plate | 3mm Corning III |
| TP IC | ILI2510 | TP interface | I²C |
| Remark: | 1. Screen with screen line and backlight pressure plate, 2.G+G 3mm thickness cover plate, 3.It comes with an ILI2510 USB board and a 1M USB cable |
Description of Products
The resolution is 1920*1080, and the display effect is IPS.
It is composed of TFT LCD panel, driver IC, FPC, back light source (screen with screen line and backlight pressure plate) and G+G 3mm thickness cover plate + ILI2510 USB board and 1M USB cable, suitable for security and industrial control equipment
Also using LVDS-4 channel interface 30PIN, can work in -0℃~50℃, storage temperature: -20℃~60℃;
This product is widely used in industrial control, medical, handheld, security, vehicle, instrumentation and other related products
All products are available with or without touch and industrial drive boards, no matter what configuration you choose,
Can be customized according to your requirements (can be customized backlight, FPC, touch screen, industrial drive board)
Comply with RoHS and CE certification standards;
If you can't find a suitable one, please contact us for a recommendation.
Packing and Shipping
Packing Details:
1. All products are packed in the correct way to ensure safety.
2. For small size products, we use pallets = cartons.
3. For larger sizes, we use knife card + foam + carton.
4. We can also design packing according to customer's requirement.
transport
1. By express delivery (3-7 working days), applicable to emergency time and small amounts.
2. Sea transportation (15-30 days), suitable for conventional mass production.
3. Airfreight (4-5 days), from airport to airport.
